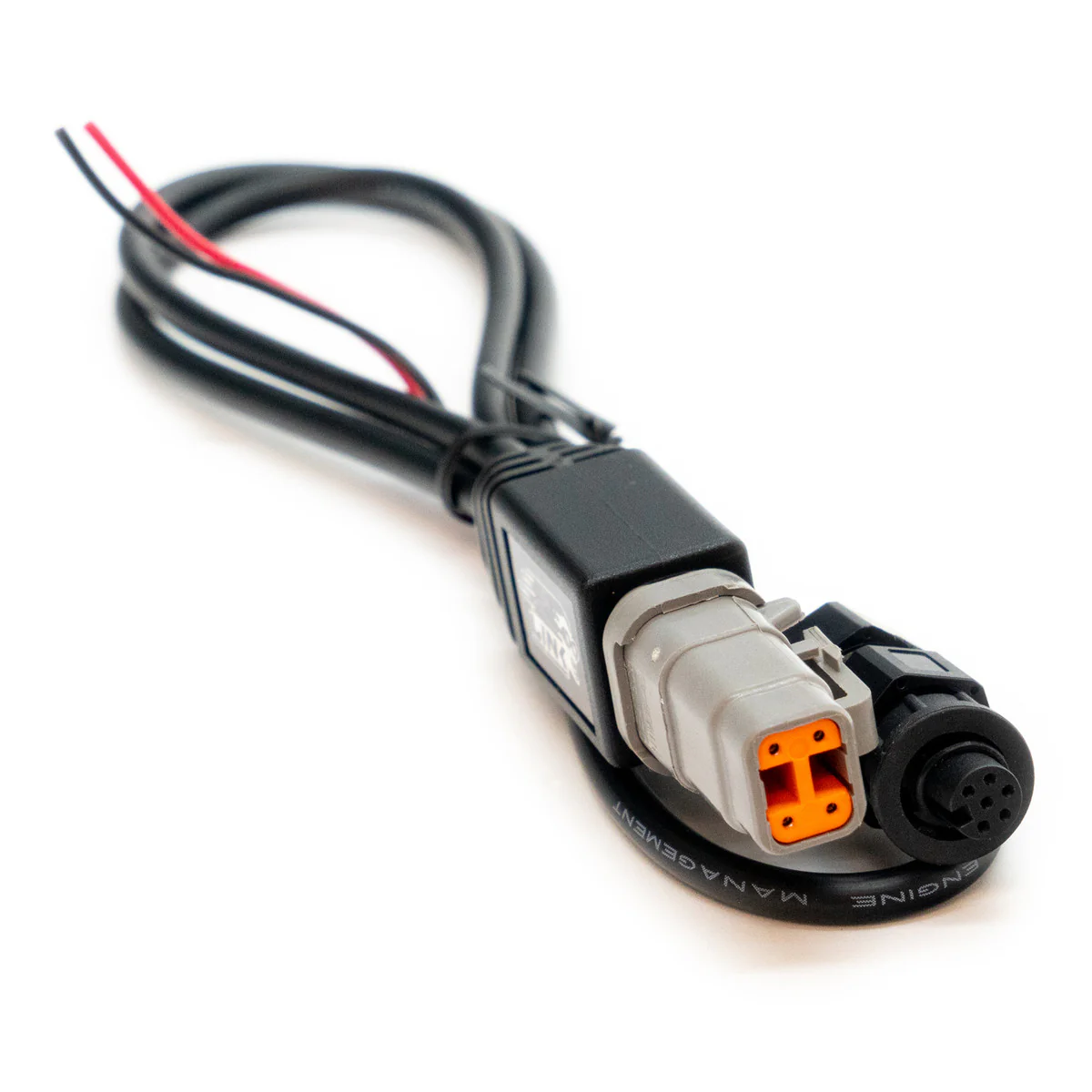

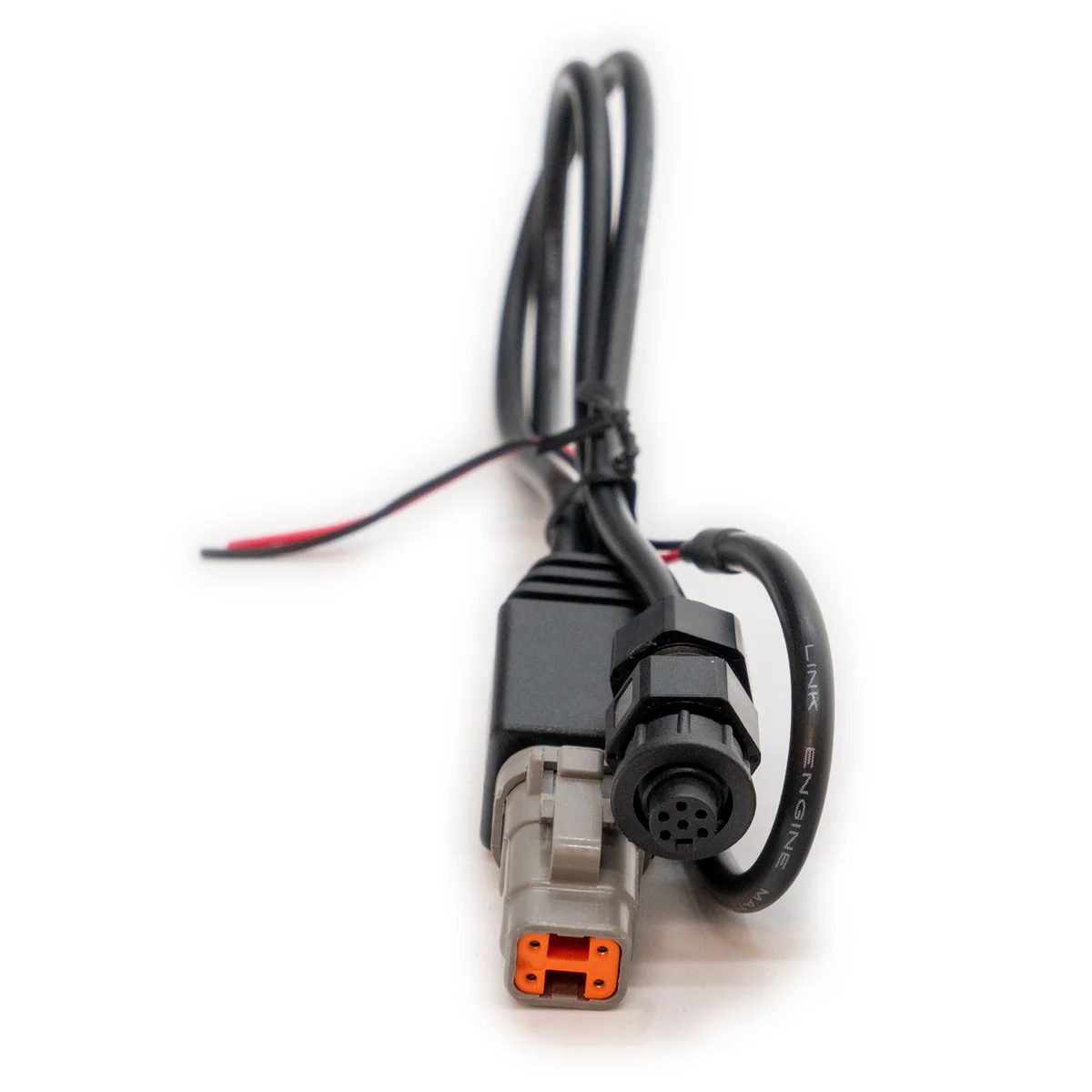

Link ECU CANLTW - CAN Connection Cable for WireIn ECU’s (6Pin CAN)
Required to add CAN communication to WireIn ECU's which have CAN accessible via the 6Pin round CAN connector on the front of the ECU.
Compatible ECU's:
- G4X/G4+ Xtreme (CAN1)
- G4X/G4+ Fury (CAN1)
- G4+ Force (CAN1)
- G4+ Thunder (CAN1)
Specs
DTM4 Male to LTW 6Pin. 12V & GND Flying Leads. CAN Loom Length 300mm (Flying lead length 500mm)
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
